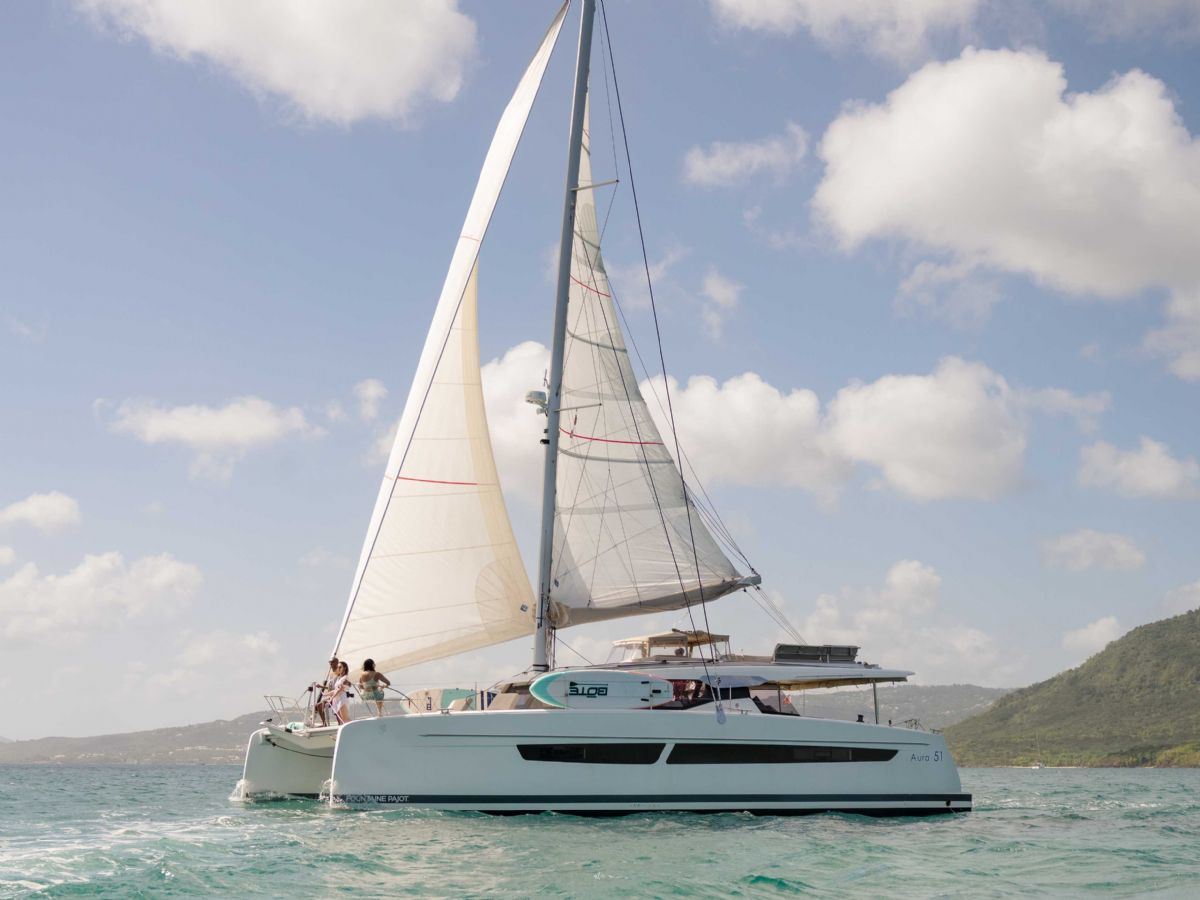

Fountaine Pajot Aura 51

MOTORES:
2 x Volvo Penta D2-75
Horas motor: 3200 aprox.

CAPACIDADES:
Combustible:    450 Litres
Agua:   900 Litres

EQUIPO MECÁNICO:
GENERATOR
13,5KW 220V 50HZ genset

CONVERTER
Victron 220V Multiplus3000W
Victron 110V 2000W

Watermaker 180L/H 50HZ

Battery charger Victron Multiplus 12V/3000W/120Amp
Victron Multiplus 12V/2000W/80Amp

ENGINE
Access via polyester deck hatch installed on stainless steel gas cylinders
Soundproofing
Holds lit by 1 neon
2 sail-drive Volvo Penta D2-75F (75HP) engines
2 three-blade fixed propellers
Salt water filters
Engine cooled via heat exchanger
Complete engine panel and dual controls at helm station
Hour meter
450L fuel tank in each hull with deck plate fillers equipped with an overflow prevention device
2 electric fuel gauges (indicator at chart table)
1 fuel pre-filter/water separator + 1 engine fuel filter/engine
Fuel shut-off valves
Fuel Transfer pump

STEERING SYSTEM
2 foam sandwich rudders on stainless steel rudder stock
Hydraulic tiller system with manual pump
2 cylinders (port and starboard)
Aluminium stern tubes
Self lining upper and lower rudderstock bearings
1 emergency tiller

PLUMBING
Prefilter 20 Micron and charcoal for the fill up at shore
Omnipure drink water filter
2 freshwater tanks (900L total capacity) with 1 electric gauge at chart table
2 electric pump and pressure accumulator + one spear
2 60l water heaters

GREY WATER & BLACK WATER
Shower drainage via individual shower pump (automatic pump-out)
Holding tanks for all WCs

BILGE SYSTEM
Bilge pumps directly powered with 12V by the service unit
1 electric automatic bilge pump (4 m3/h) in each engine room
2 electric automatic bilge pump (4m3/h) in each hull
4 automatic starting for bilge pumps with audible and visual alarm at the chart table
1 manual exterior bilge pump

POWER CIRCUIT
Shower power supply 110V with cable
Shower power supply 220V with cable
2 15A/12V engine alternators
1 set of starboard 12V onboard/engine batteries 750A/h (5 x 150 Ah) + 2 optional
1 port engine battery 50A/h/800CCA
1 automatic back-up connection and 1 automatic connection

12V ELECTRICAL DISTRIBUTION
Multiplexed distribution of 24V functions
Chart table function control on navigation screens
Main functions backed up on backup screen
Monitoring: for tanks, batteries, and alarm management
Spare sockets for extra equipment

DISTRIBUCIÓN:
Berths: 10
Cabins: 5
Head: 5
Crew Berths: 0
Crew Cabins: 0

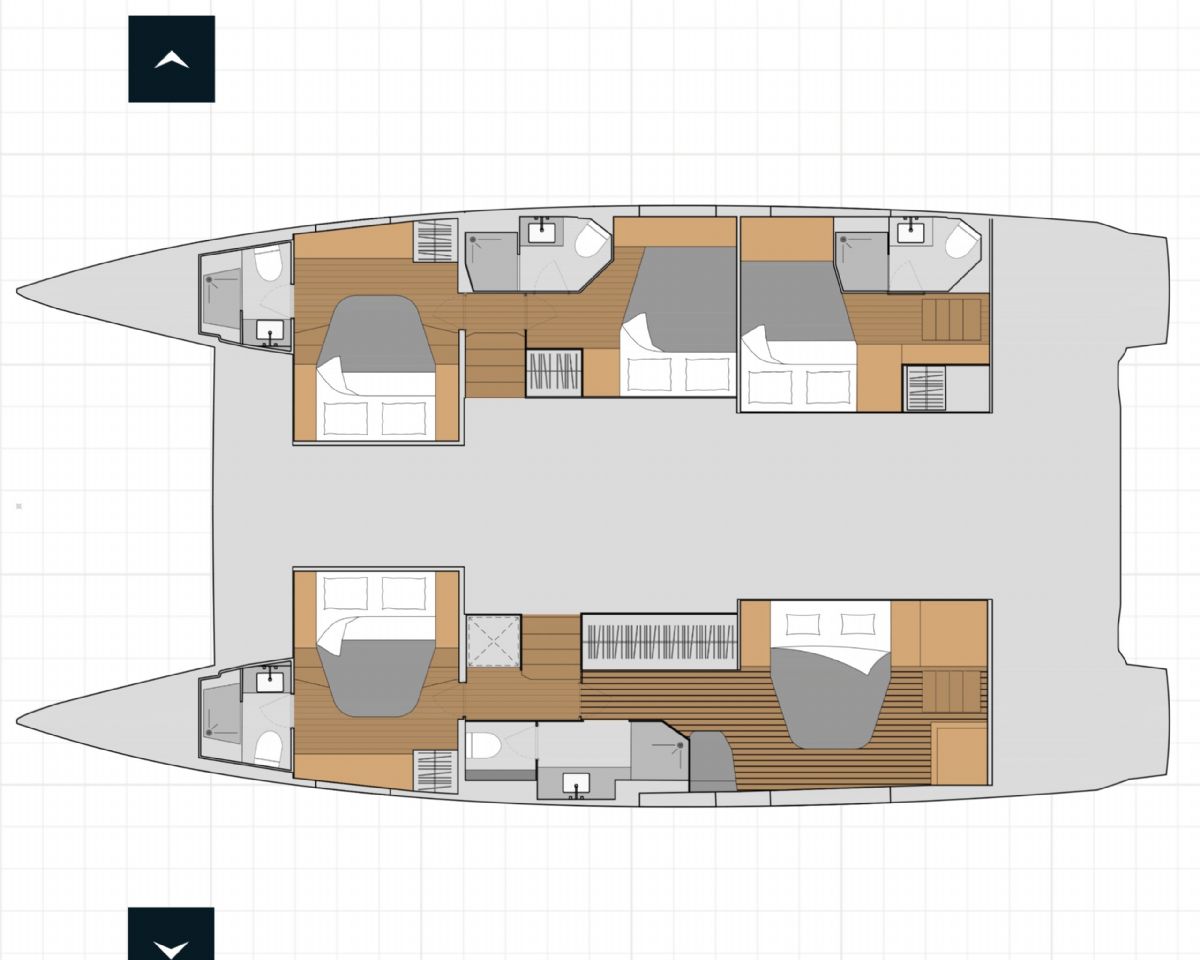

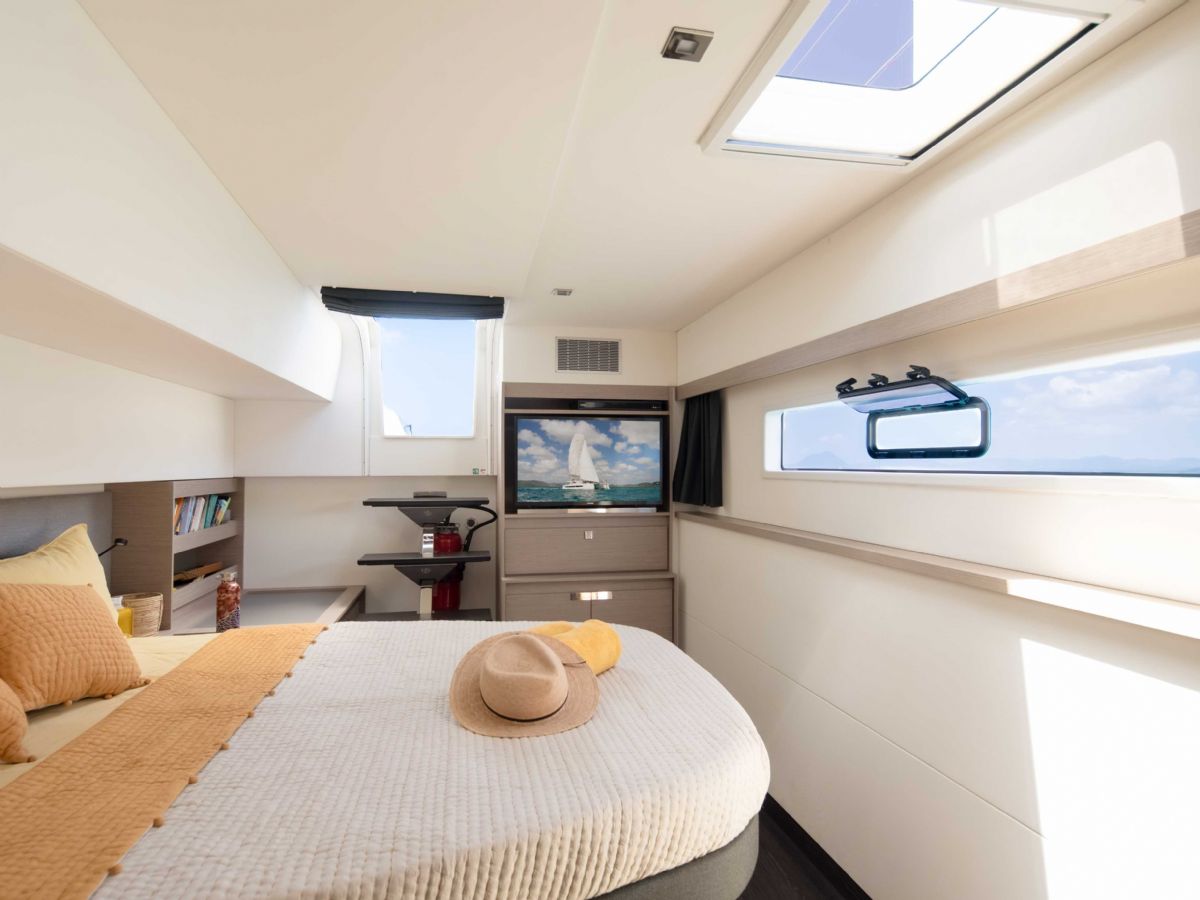

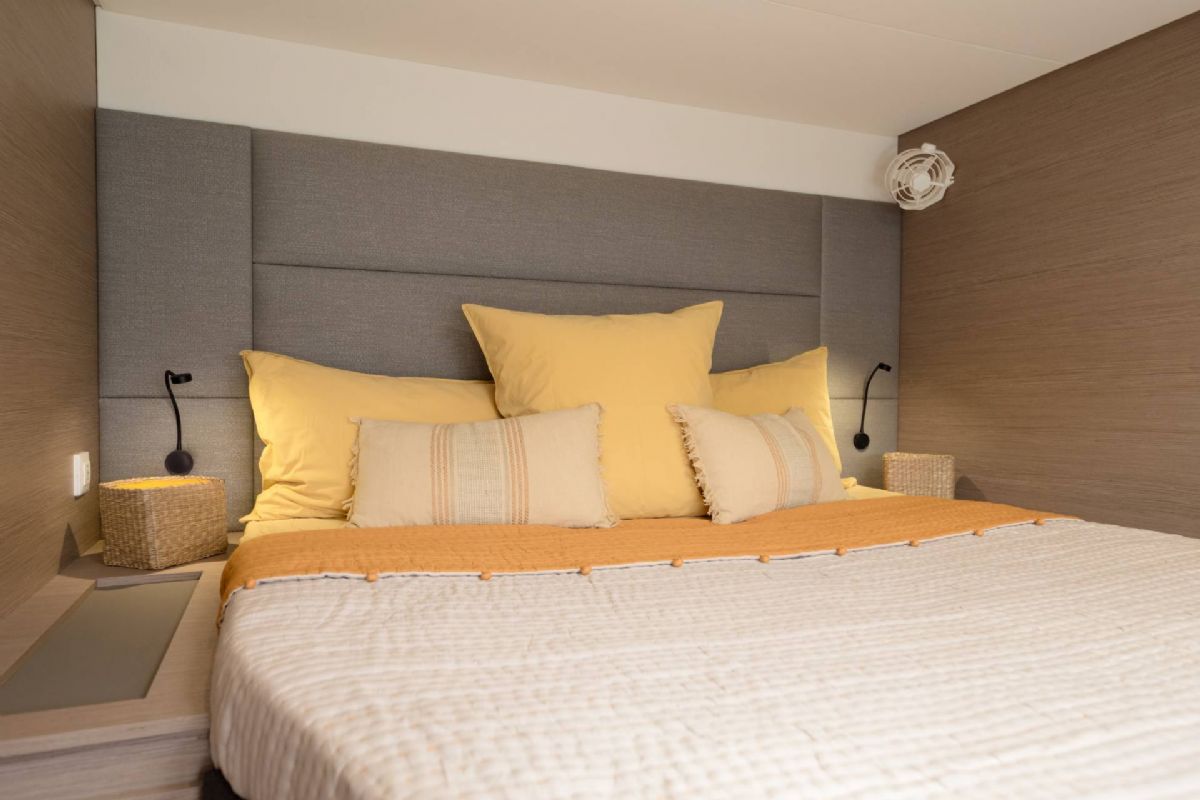

Maestro 5-cabin version of the Aura 51, featuring a beautifully appointed owner’s suite and four double en-suite cabins

EQUIPO DE INTERIORES:
Air con individual system in each cabin + 2 in the saloon

COCINA/LAVANDERÍA:
Galley opened to the outside via a sliding bay
Ventilation via a deck hatch (above the stovetop)
Resin worktop
2 sinks
Hot and cold pressurized water from mixer tap
1 stainless steel 4-burner hob with pan holder
Washing machine 5kg 220V
1 stainless steel gas oven
A central island with 3 storage cupboards, 1 drawer, and 1 rubbish bin accessed
vertically, bags evacuated by independent door
Central island that can accommodate a maximum volume of 90L in conservation mode (optional)
3 large storage cupboards under the sink (can accommodate a dishwasher as an option)
1 drawer and 1 storage cupboard beside the oven
1 sideboard behind the hob
Storage on worktop with drawer
At the front, 190L cold storage drawers with 12V cooling system
1 open storage space on the worktop above the cooler
Storage spaces underneath the floor
Lighting via LED spotlights
Multifunction radio switch

NAVEGACIÓN:
Saloon GPS plotter & outside GP plotter
GPS Garmin Map 8410 inSar
GPS Garmin 6ps-8610 on fly

CHART TABLE
Raised starboard console for navigation instruments
Storage drawer
1 12V socket
Lighting via LED ceiling spotlight and 1 reading light for the chart table
Multifunction radio switch

VHF 315i
Garmin Ais 800
Autopilot Reactor 40 with screen

EQUIPO DE CUBIERTA:
HARDWARE
1 steering compass
3 winch handles with their 2 pockets
Pulpit and pushpit, stanchions with upper and lower guardrails
Pulpits with bow pulpit seats
Access to transom

LOUNGE DECK
Access via staircase from wheelhouse
Area available for sun lounger and mattresses
Visibility 360°
Lounge area with large sofa

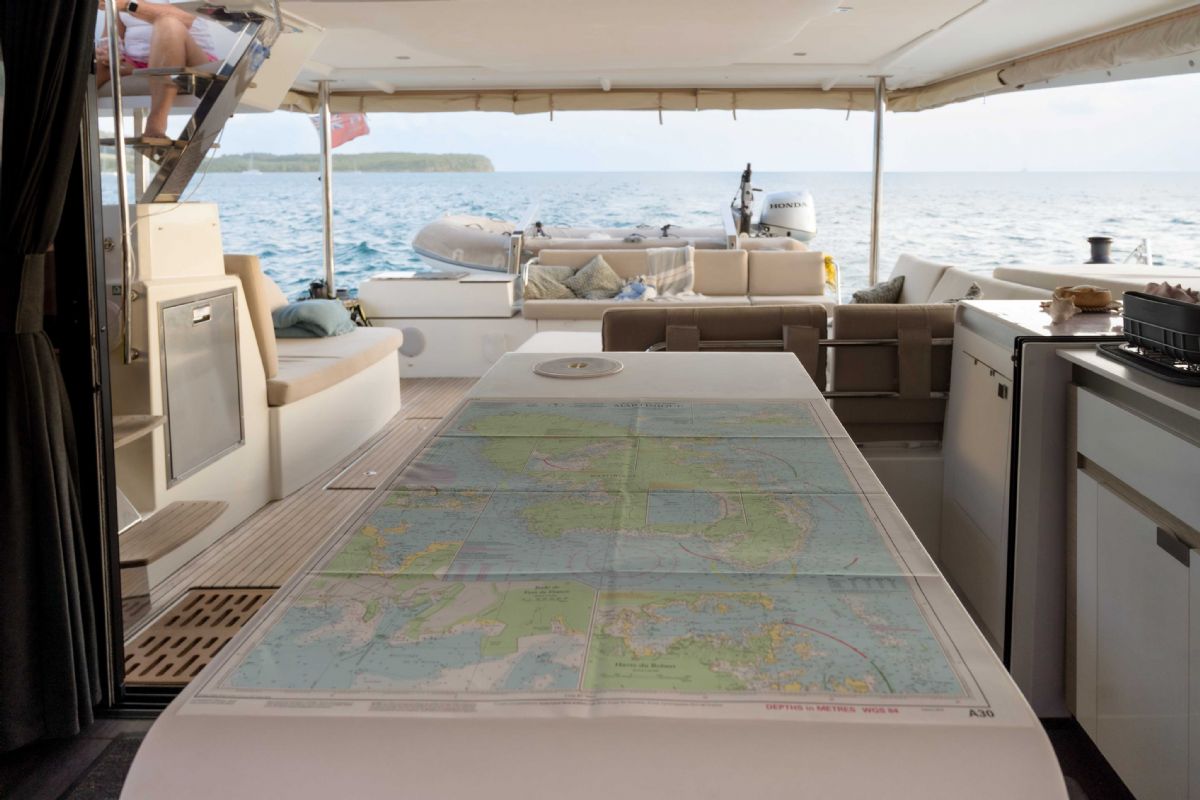

COCKPIT
Large cockpit on same level as the saloon
Access via the rear transoms
Transom platform with swimming ladder (starboard) and handrail
1 hot and cold water shower in the starboard and port side
GRP bimini protecting all the cockpit + sun shade

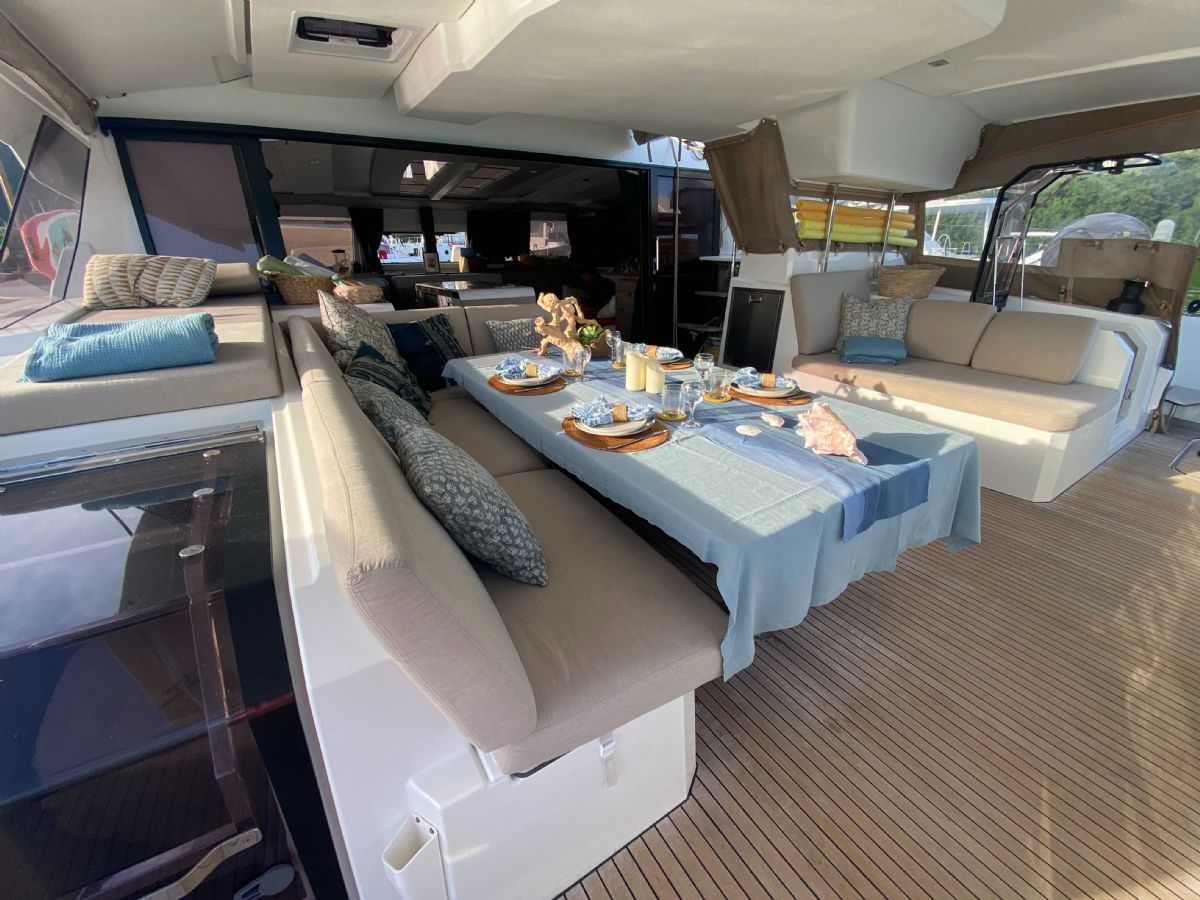

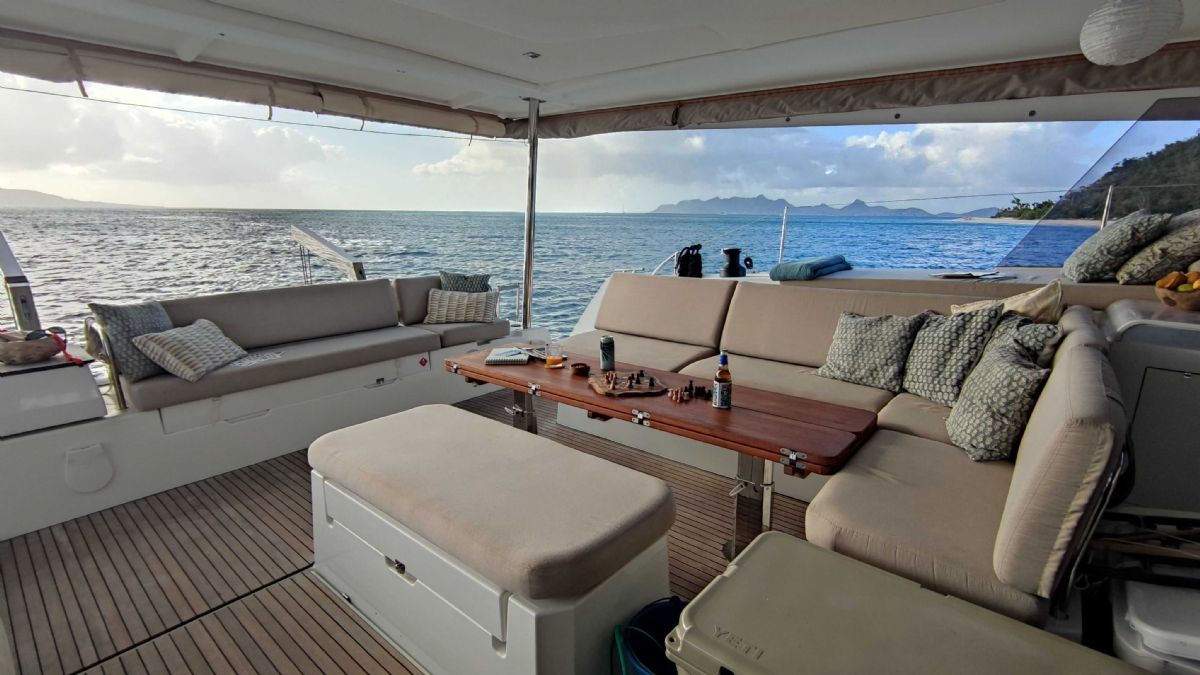

8 seat sofa around the table
1 x 8-place teak cockpit table
Serving hatch to the galley via sliding bay
1 large storage area under the central sit
11 mooring cleats (4 foredeck + 2 middle + 4 astern + 1 in anchor well)
8 fenders
4 x 15 m mooring lines
1 x 1700W electric windlass with circuit breaker protection
Anchor fairlead under bridge deck with built-in bridle
1 roller on forward beam
Net on forward beam

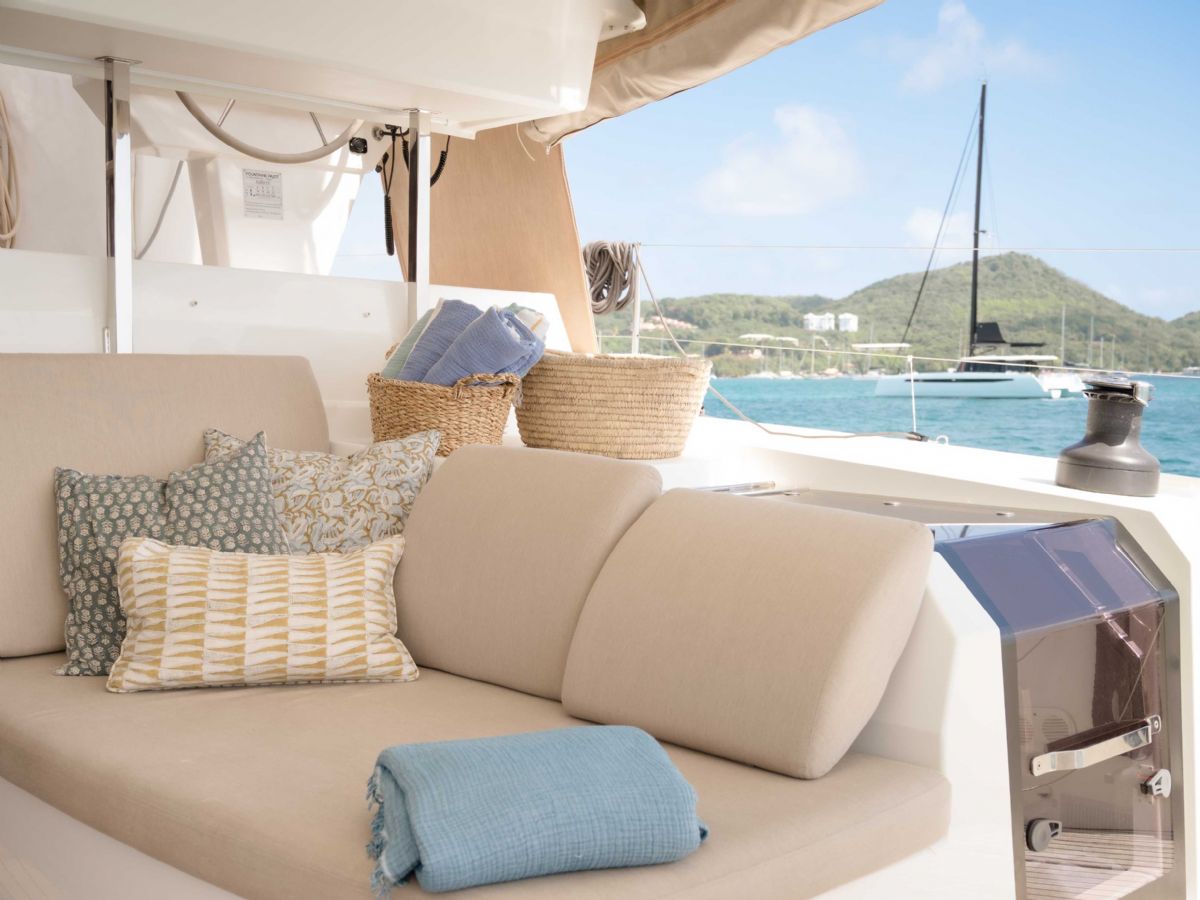

1 starboard-side sofa
1 transom sofa with large storage locker
1 gas chest for 3 bottles + one
1 space for a 90L cockpit refrigerator
Natural lighting and ventilation via 1 deck hatch
Lighting by waterproof LED spotlights
Multifunction radio switch
1 boat wash brush
1 water hose 25mt

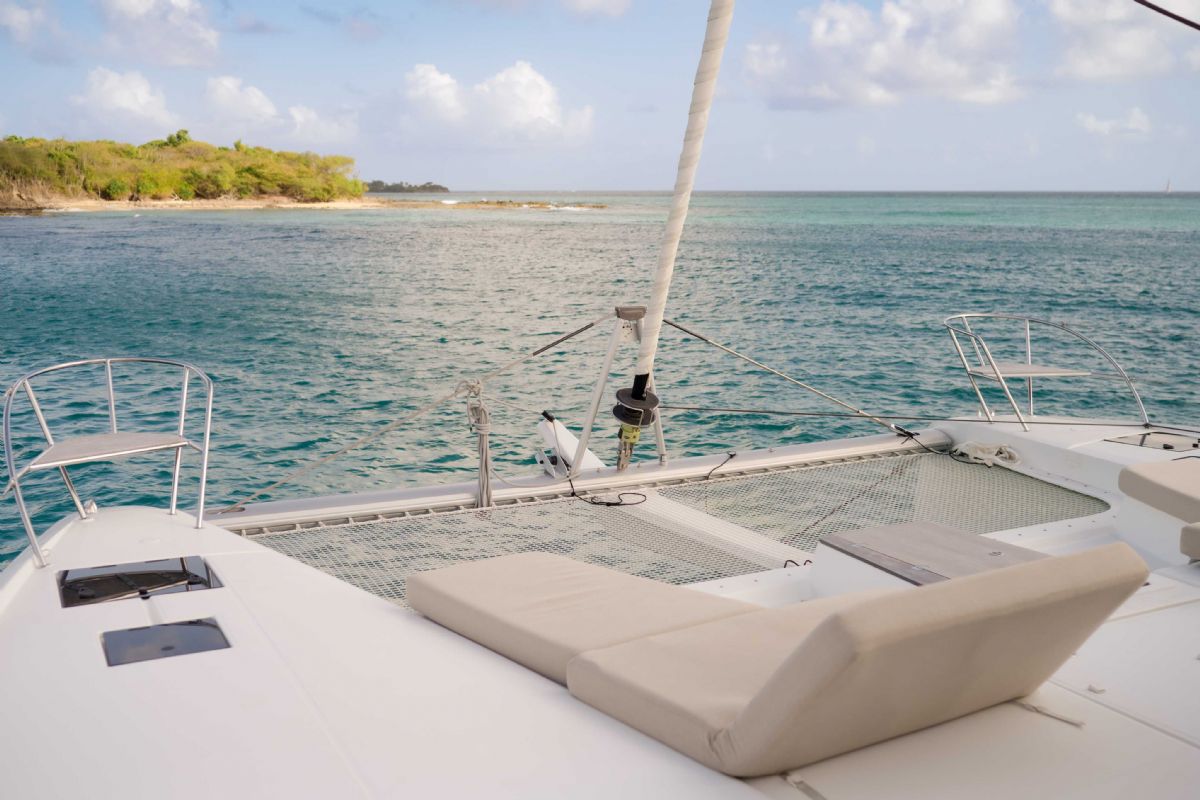

FOREDECK SALOON
Large waterproof locker on port side with space for generator
Anchor locker with access by cover

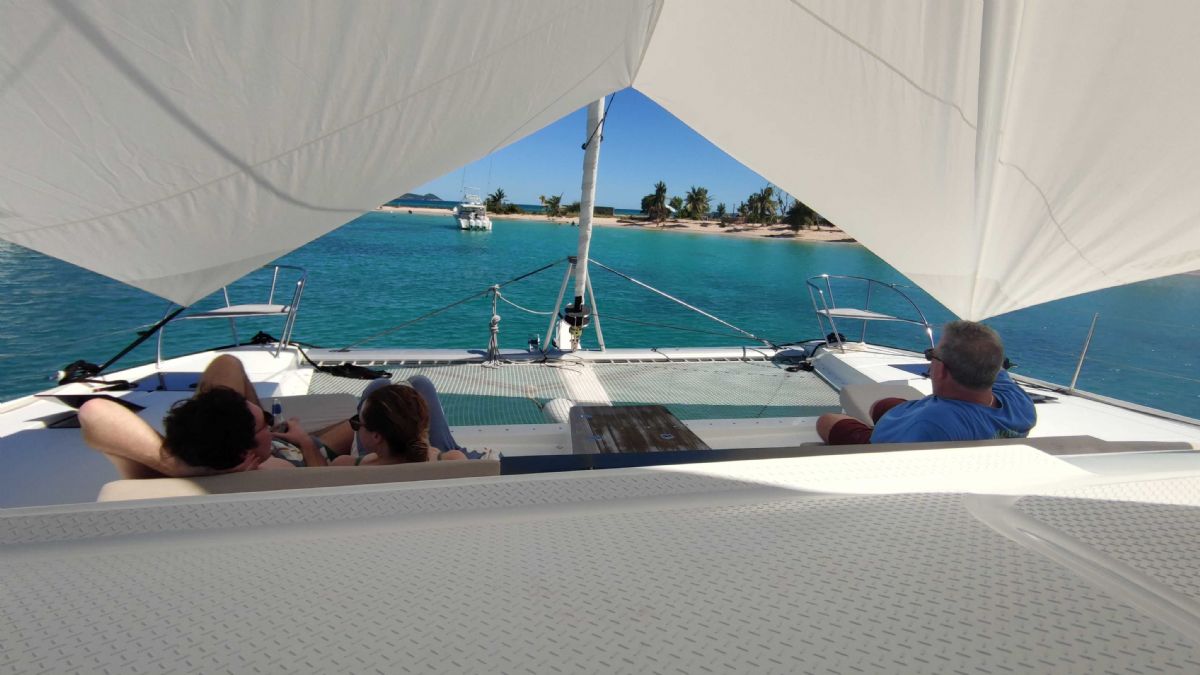

Relaxation area with sun lounger

JARCIA Y VELAS:
SAILS
Matten CSR mainsail
Genoa furler
Genoa with UV band

RIGGING
Anodised aluminium mast and boom
Full standing rigging
Ball bearing mainsail luff carriages
1 tackle on mainsail halyard
1 topping lift
3 reef lines
1 genoa halyard on mast tensioning rail
1 spinnaker halyard
Lazy-jacks
2 flag halyards
Navigation, running, and mooring LEDs
Deck lighting

HELM STATION
1 mainsheet tackle led aft to coach roof
1 clutch for mainsheet
1 clutch for the mainsail halyard
1 clutch for the spinnaker halyard
1 clutch for the topping line halyard
3 clutches for the reef lines
1 size 55 self tailing winch for mainsail sheet, reef lines
1 size 63 self tailing winch for mainsail halyard
1 size 63 self tailing winch for genoa sheet
1 ball bearing mainsheet traveller
2 tackle on mainsheet traveller clutches with back on roof
genoa tracks with load block
2 genoa sheets
1 halyard storage bag

SEGURIDAD:
epirb
sart
2 horseshoe buoy quick rd 142n orange
2 horseshoe buoy support
2 30m orange floating rope diam 8
1 lifebuoy light m.o.b. ( lsa code)
1 rail base for lifebuoy light
4 rubber bucket
1 automatic fog horn
2 aluminium boat hook
12 harness adjust. life link
12 double harness link
2 thermal blanket
1 binocular
1 motoring black cone
1 black anchor ball
1 radar reflector
12 automatic life jackets adult (3 with individual a.i.s balise)+ 2 children’s
8 jerry can portable fuel tank 22 litres
2 jerry can portable gasoline tank 22 litres
9 fire extinguisher 1 kg dry powder abc 40 with base
1 shroud cutter
2 safety jacklines lifelink (pair) 10m
2 flare pack: 3 hand signal; 2 smoke signal; 3 parachute signal
1 marine first aid kit dotation 60 m(control every year)
12 thermal protection aid
2 icom m25 waterproof handhed vhf
1 fire blanket
1 set of large softwood plugs
1 set of small softwood plugs
life raft 60 m four water 10 persons (+ bag for oceanic croissing)

COMENTARIO DEL AGENTE:
Aura 51, build by Fountaine Pajot, is a Maestro 5-Double Cabin Catamaran that combines contemporary elegance with effortless functionality. Designed for indoor-outdoor living, the catamaran features a fluid connection between the cockpit and saloon, enhanced by a galley-up layout that creates an open, welcoming atmosphere.
A striking teak dining table anchors the social area, comfortably accommodating up to eight guests. Easy and intuitive to sail, Aura 51 offers a spacious, well-shaded flybridge with all sail controls led efficiently to the helm, flush decks for a sleek profile. Inside, the saloon provides a refined retreat with deep, plush sofas. She includes a luxurious owner’s suite and four double en-suite cabins.

LUGAR:
Caribbean
